MOREBULB / WHOLESALE & OEM
Metal halide LED replacement for your next product range or retrofit project.
230V direct mains lamps with E27 and E40 bases. Wholesale and private-label supply for importers, distributors, e-commerce sellers and contractors.
Rated 220-240V AC. Retrofit installation requires ballast bypass.
Catalog power options
Output varies by model
Model-specific screw bases
Direct AC mains operation

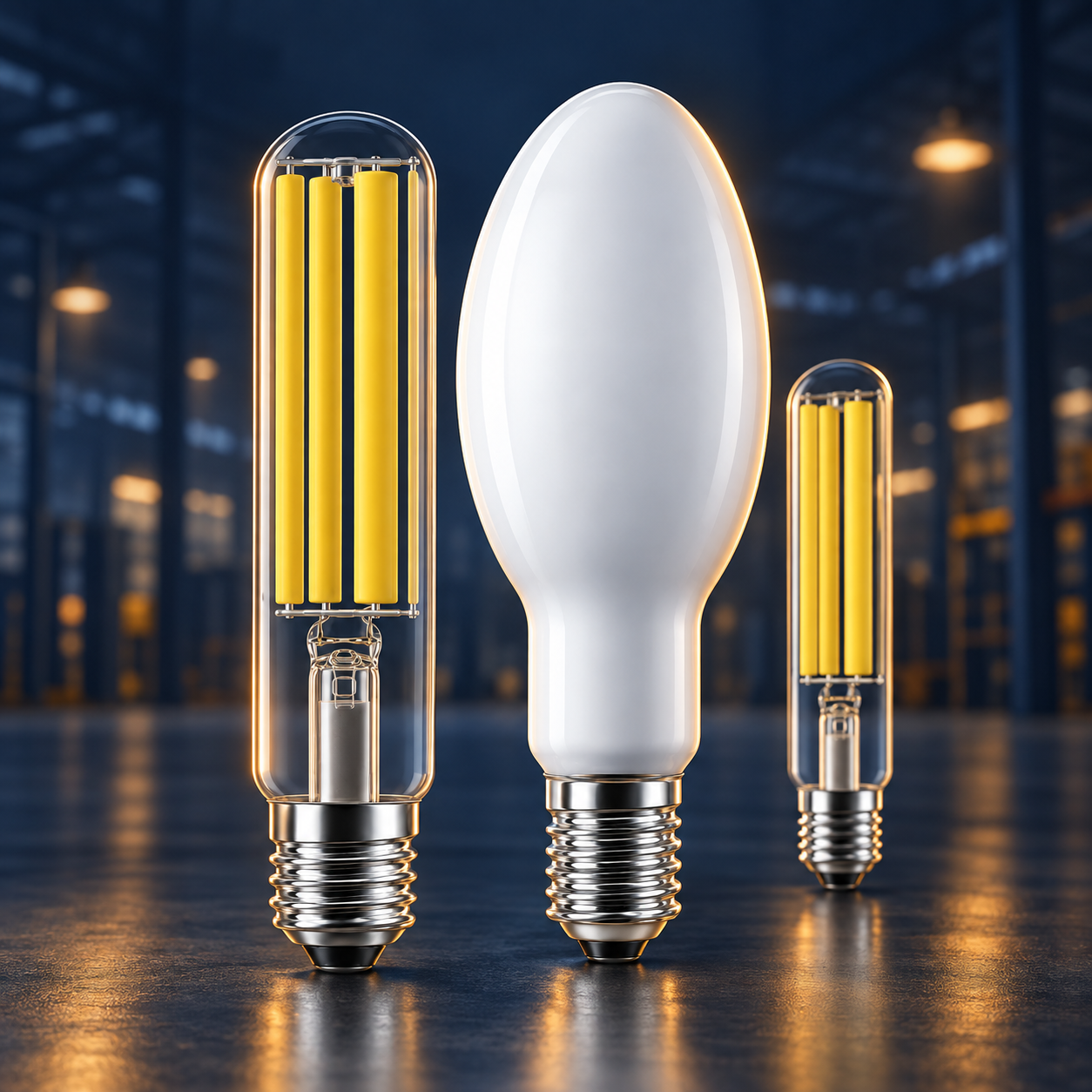

METAL HALIDE LED REPLACEMENT
An LED HID replacement bulb is an LED light source selected to replace a traditional high-intensity discharge lamp in a suitable existing fixture. This range is intended for metal halide and high-pressure sodium retrofit projects.
Select the base, lamp envelope and output together. These lamps operate directly on 220-240V mains after the original ballast and ignitor are removed from the lamp supply circuit according to the approved installation instructions.

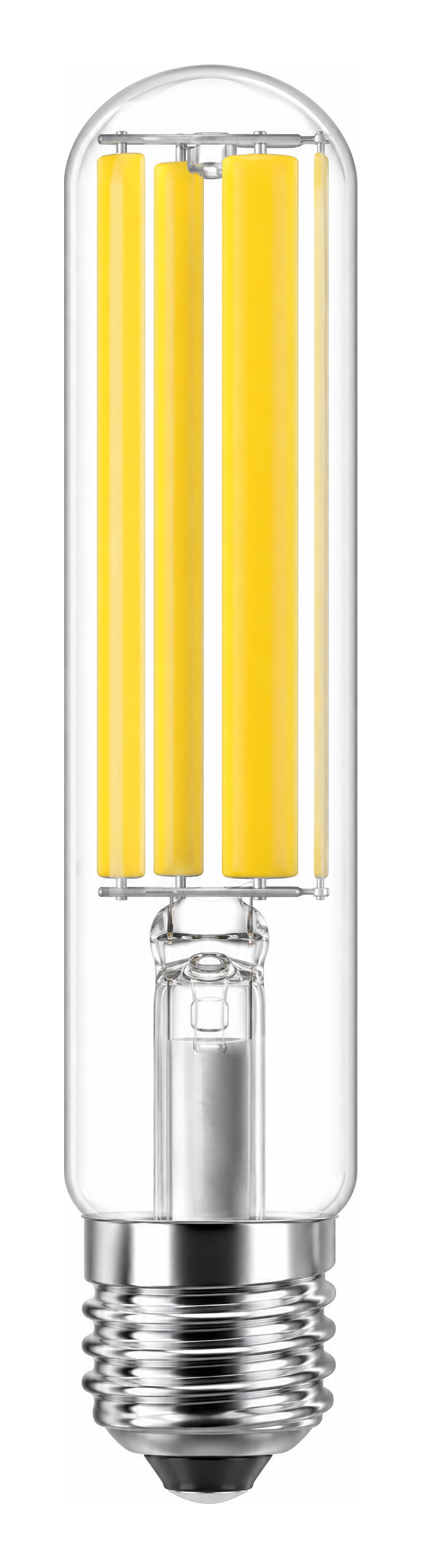

T46: 40W, 7,200lm, Ø46 × 225mm.
PRODUCT RANGE
Choose a slim tubular profile or an elliptical lamp envelope. Product images show selected finishes; use the dimensions and base listed for each configuration.

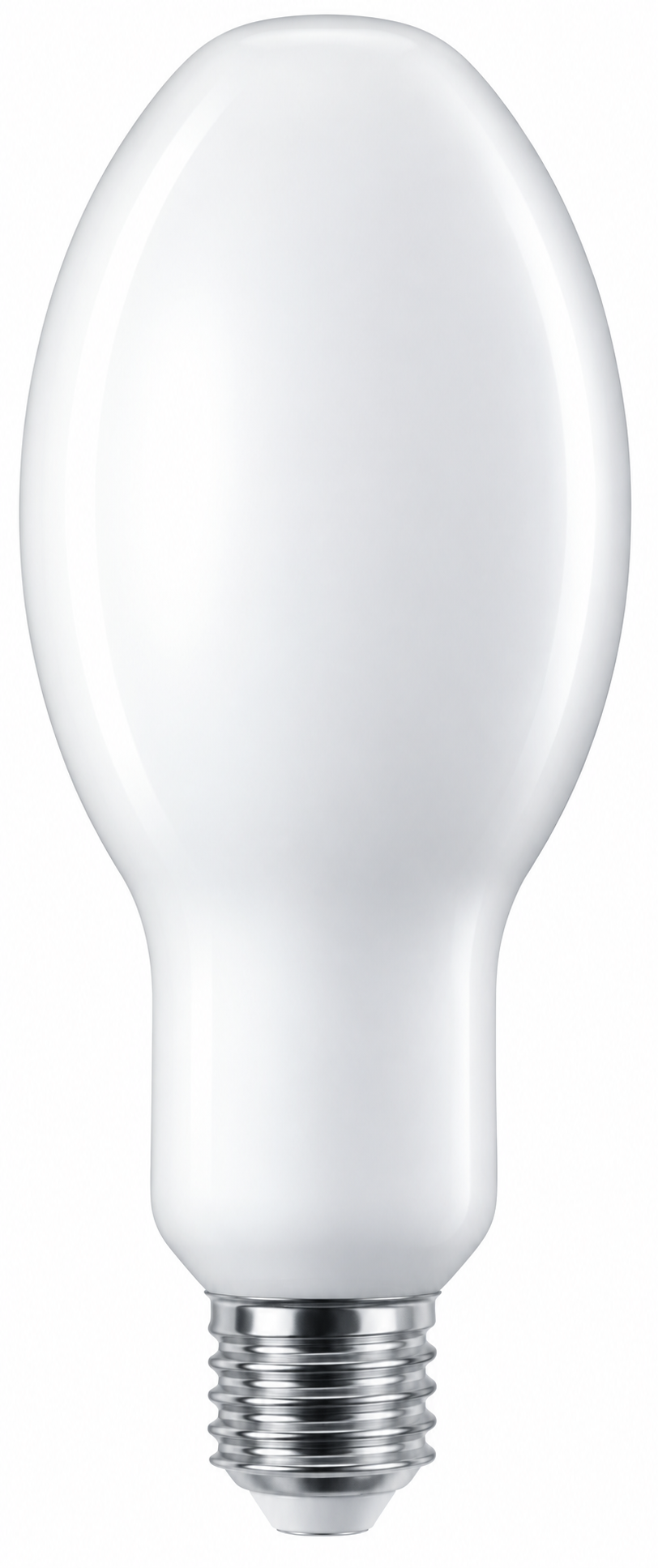

13 / 18 W / 2,000 / 3,000 lm
E27 base
Diameter 75 × length 180 mm
Clear / White finish
26 / 36 W / 4,000 / 5,500 lm
E27 base
Diameter 90 × length 245 mm
Clear / White finish

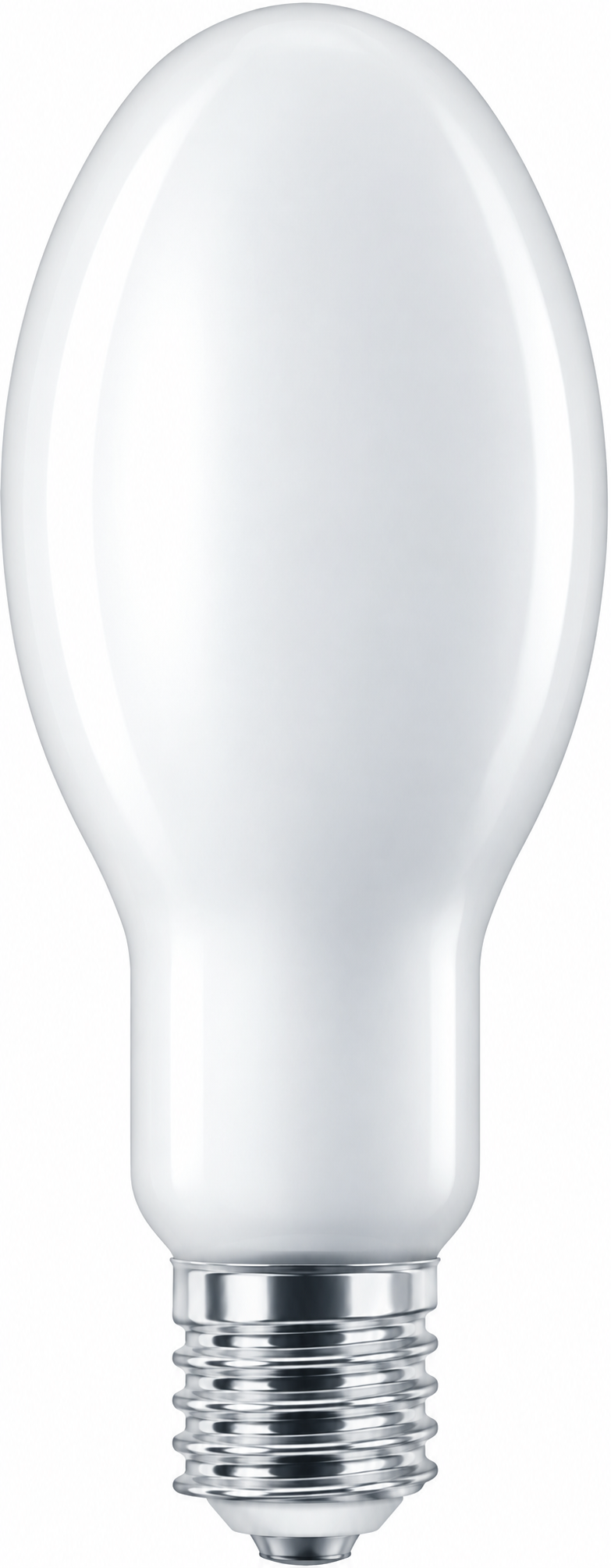

36 W / 5,500 lm
E40 base
Diameter 90 × length 230 mm
Clear / White finish
Separate wattage options are listed with a slash; this does not indicate switchable power. Product images are enhanced illustrations and are not dimensional drawings.
COMPARE THE DETAILS
Start with these catalog configurations, then request the current datasheet for the exact lamp and target market.
| Model | Base | Power (W) | Output (lm) | Ø × L (mm) | CRI (Ra) | Finish |
|---|---|---|---|---|---|---|

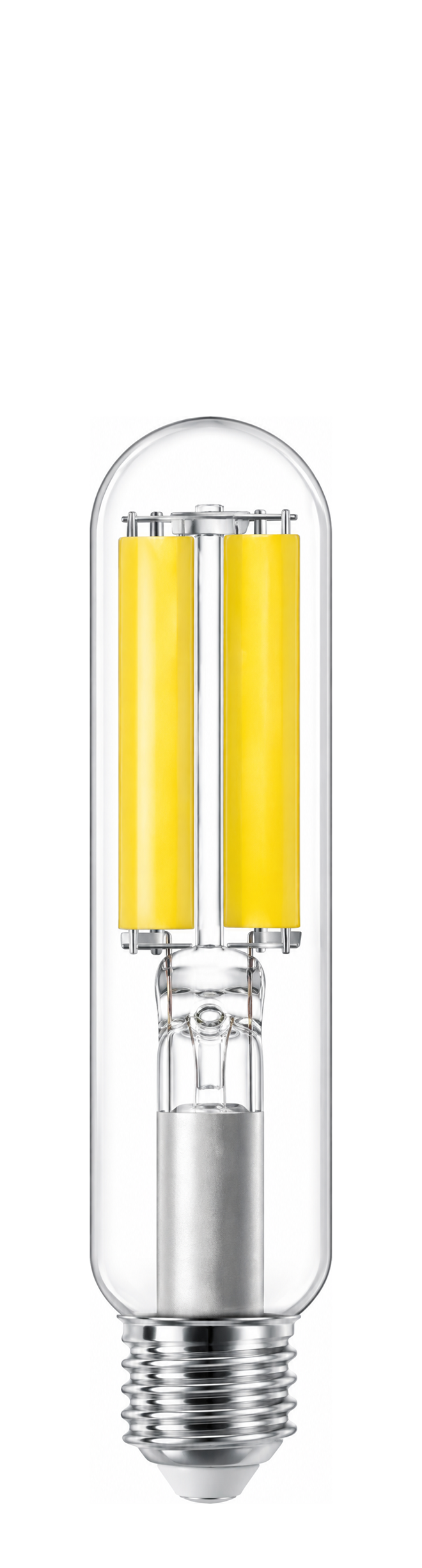

| T38 / 170 mm | E27 | 17 | 2,800 | 38 × 170 | >70 | Clear |

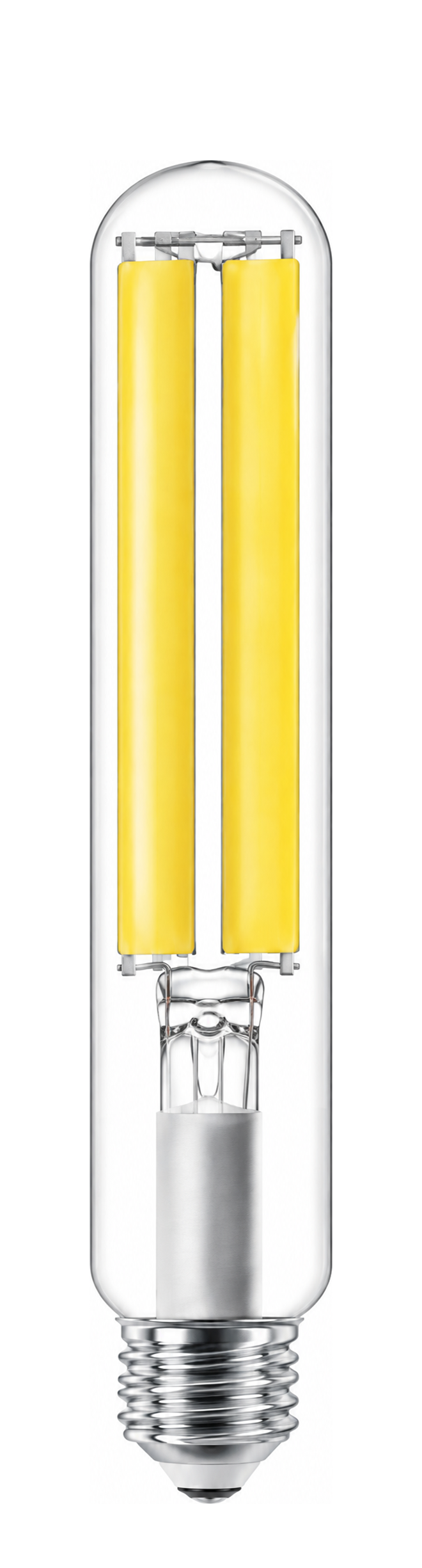

| T38 / 210 mm | E27 | 26 | 4,200 | 38 × 210 | >70 | Clear |
| T46 | E40 | 40 | 7,200 | 46 × 225 | >70 | Clear |
| ED75 | E27 | 13 / 18 | 2,000 / 3,000 | 75 × 180 | >80 | Clear / White |
| ED90 / E27 | E27 | 26 / 36 | 4,000 / 5,500 | 90 × 245 | >80 | Clear / White |
| ED90 / E40 | E40 | 36 | 5,500 | 90 × 230 | >80 | Clear / White |

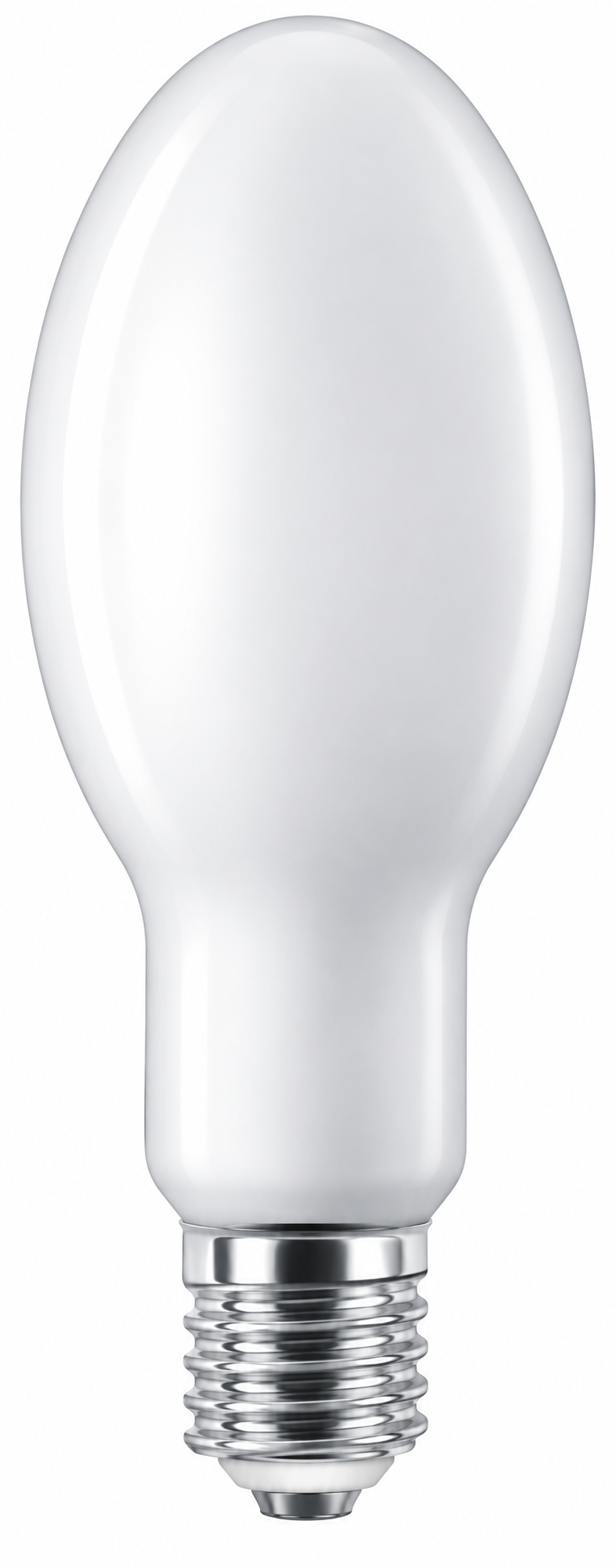

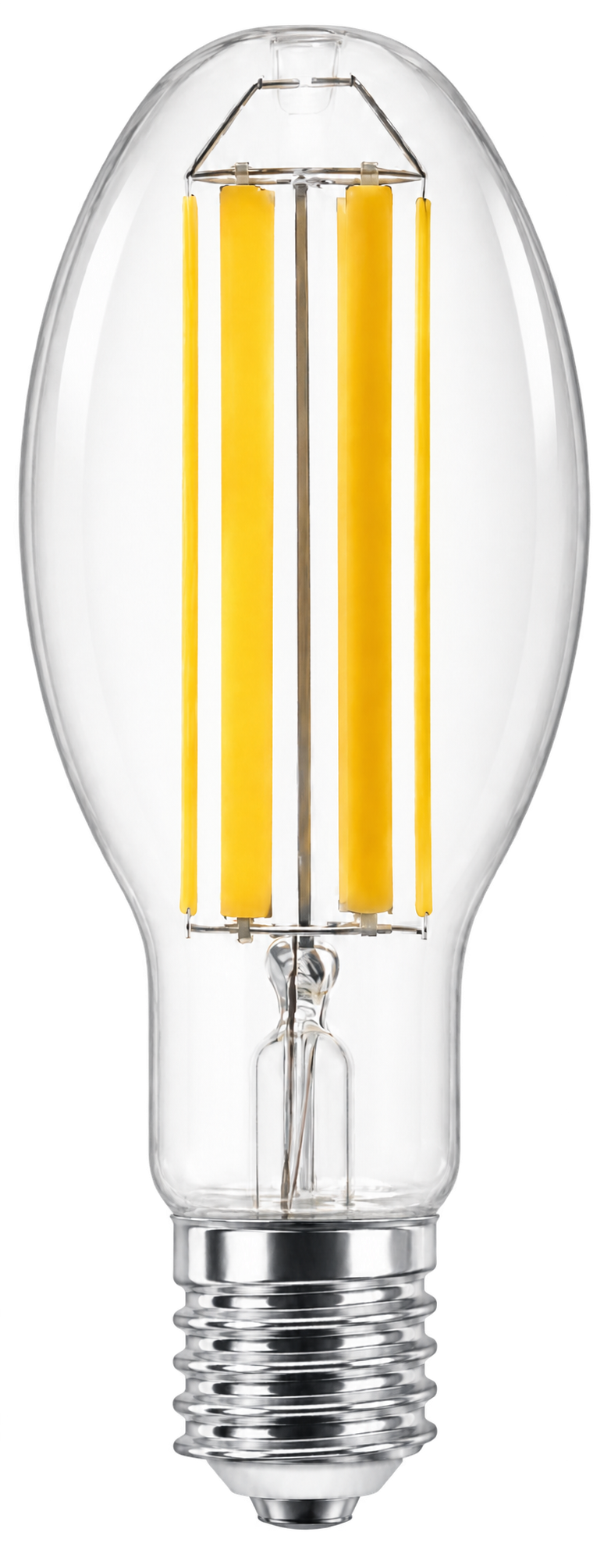

| ED120 | E40 | 60 | 10,800 | 120 × 280 | >80 | Clear / White |
For paired options, 13W corresponds to 2,000lm and 18W to 3,000lm; ED90 E27 26W corresponds to 4,000lm and 36W to 5,500lm. Catalog life is a rated reference, not a warranty duration.
ED90 base selection matters: the E27 version is 245mm long; the E40 version is 230mm long. Confirm clearance inside the fixture before ordering.

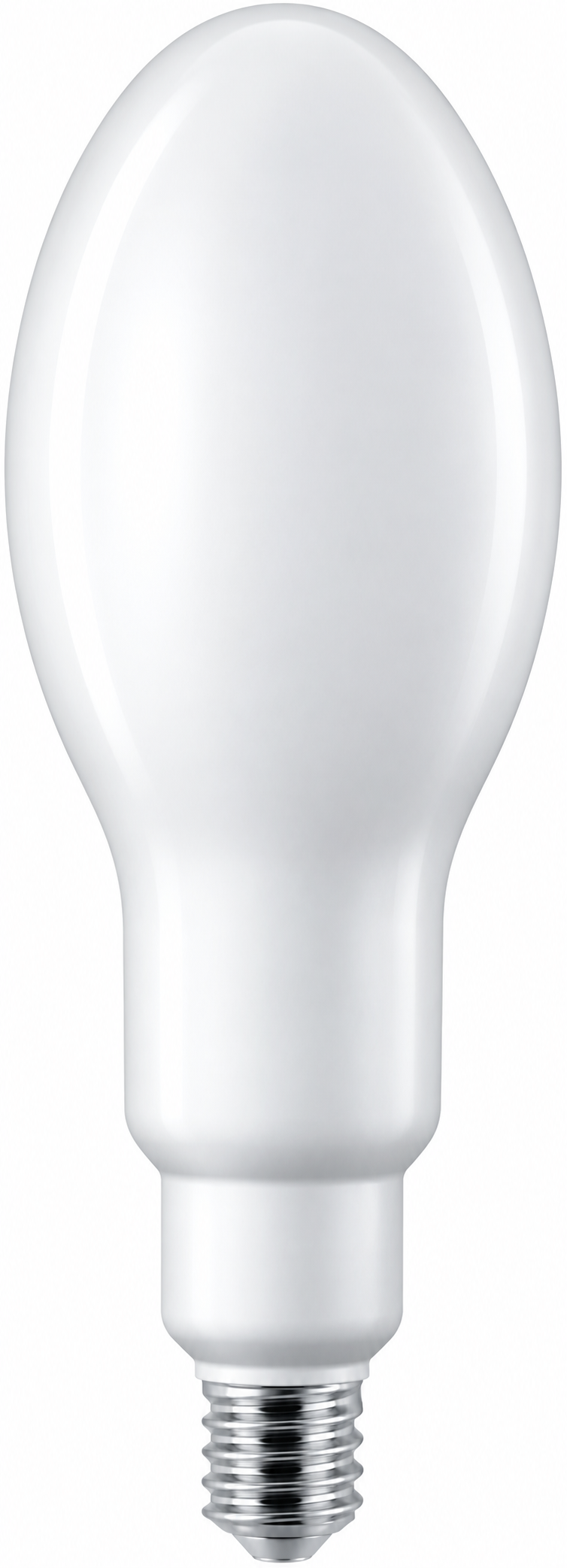

ED90 E27: Ø90 × 245mm. Check neck and housing clearance.
RETROFIT SELECTION
Choose a metal halide LED replacement against the complete fixture and lighting requirement.
Installation must be carried out by a qualified person following the approved model instructions and local requirements.
APPLICATION PLANNING
Assess the lamp and existing luminaire together. The following are project types to review, not blanket approvals for every fixture.

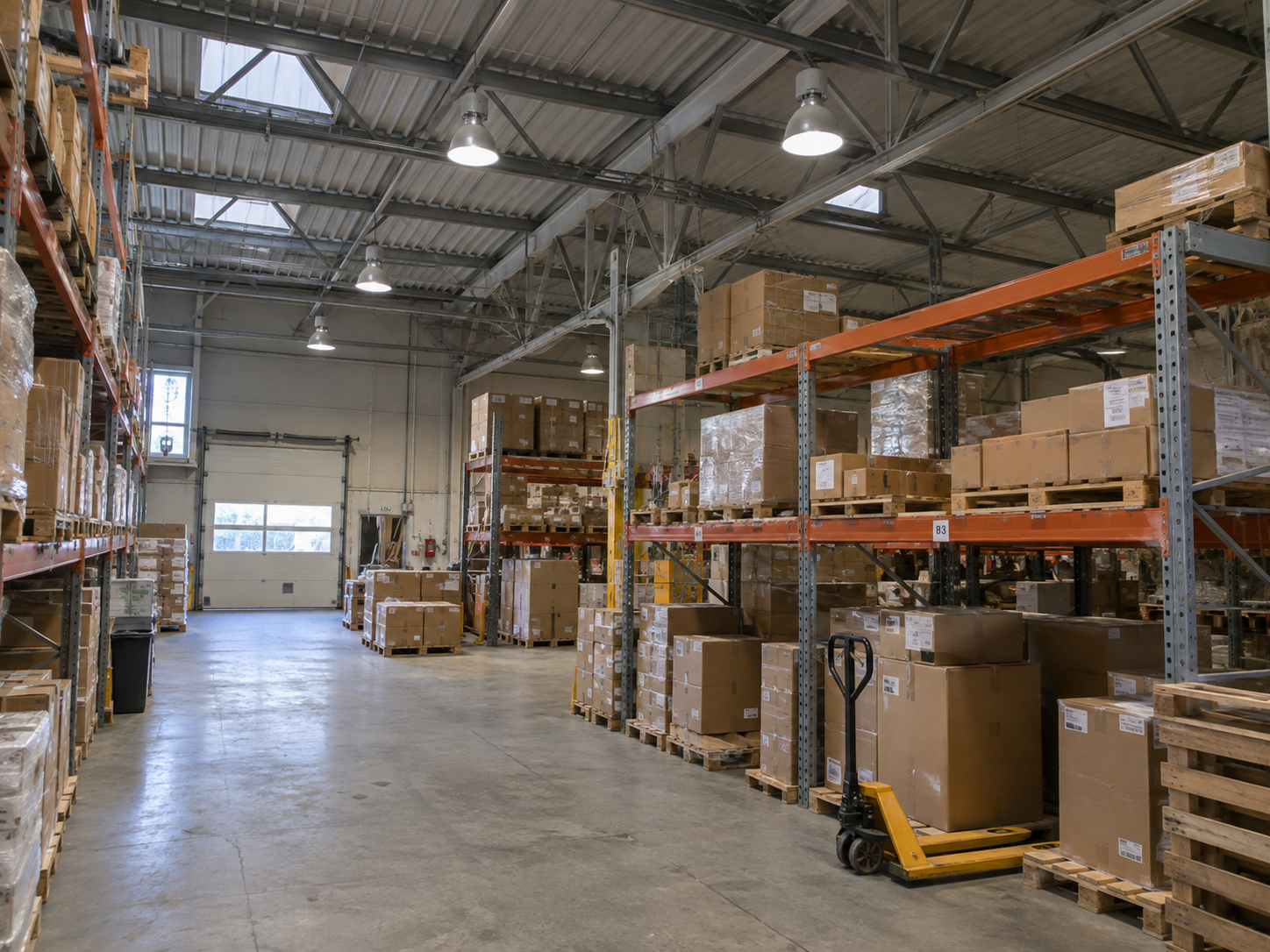

Review mounting height, reflector geometry, task illuminance and heat around the lamp before specifying a replacement.

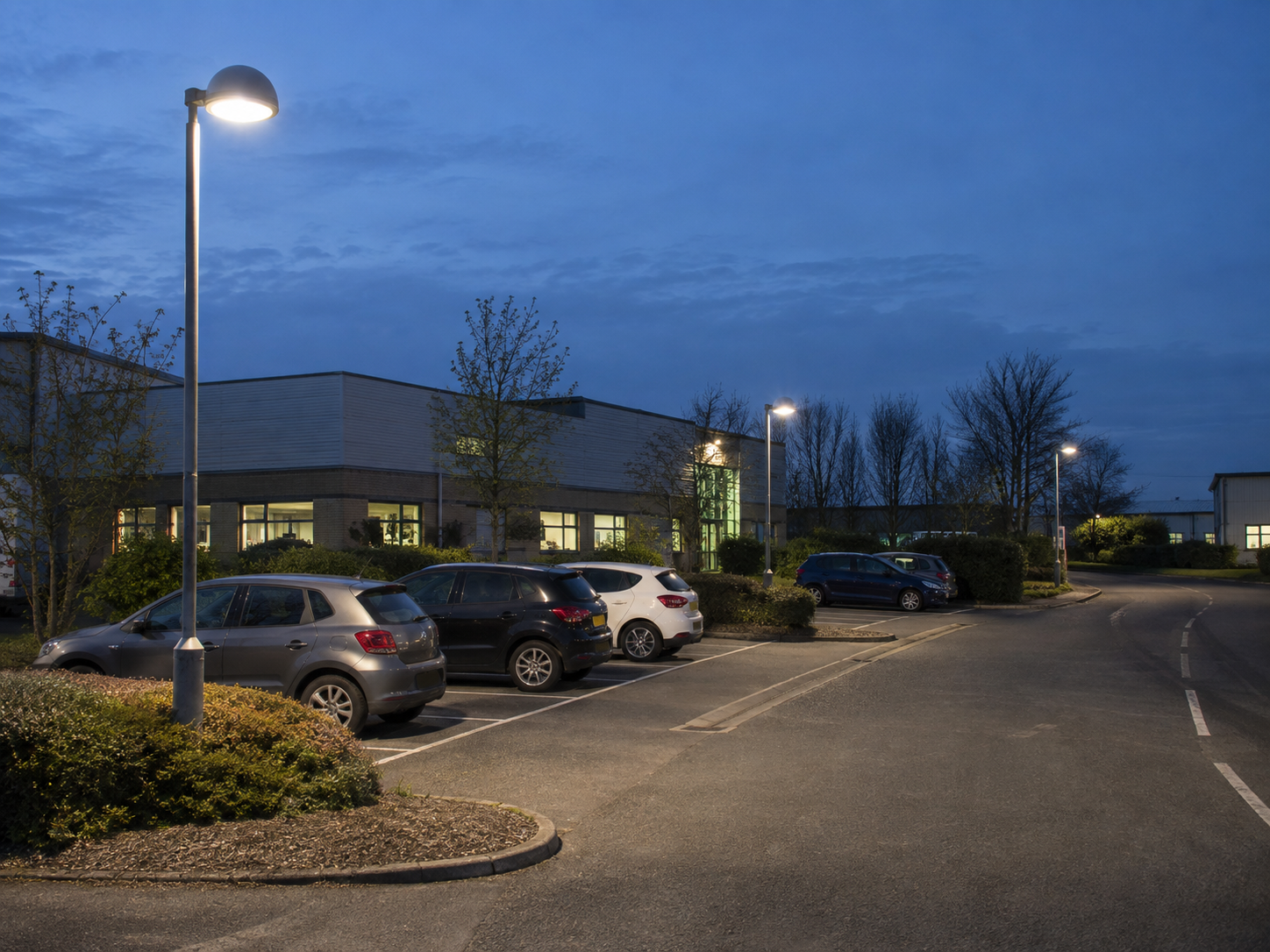

Check light distribution, glare, housing clearance and environmental protection in the existing outdoor luminaire.

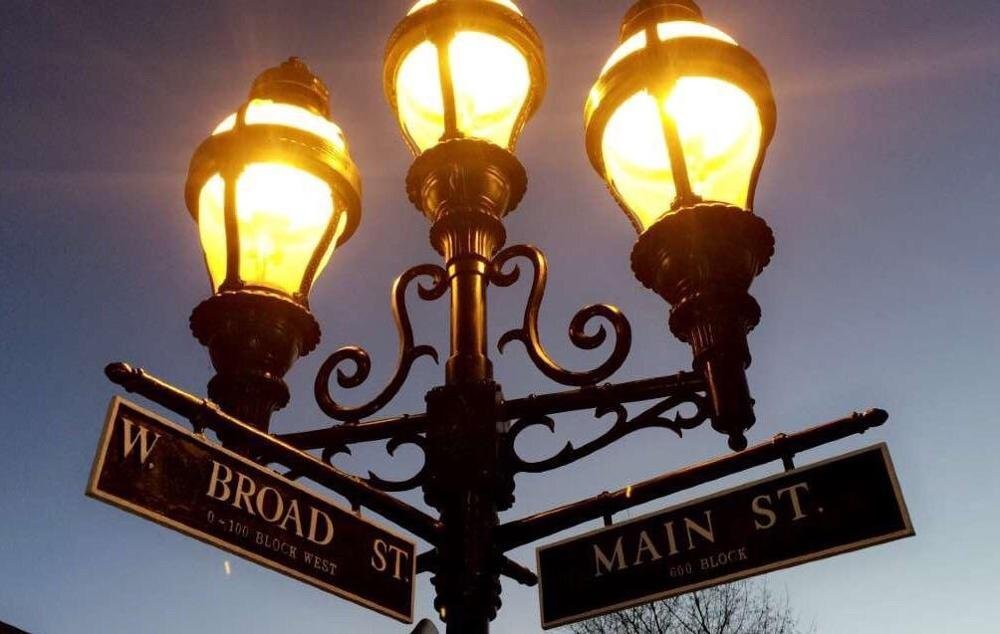

Compare the smaller E27 options for suitable post-top or enclosed housings, subject to thermal and fixture approval.
Outdoor use requires a suitable protective luminaire. Request confirmation for enclosed fixtures and the intended installation environment.
OEM & PRIVATE LABEL
Align the lamp configuration, product identity and packaging before placing a bulk order.

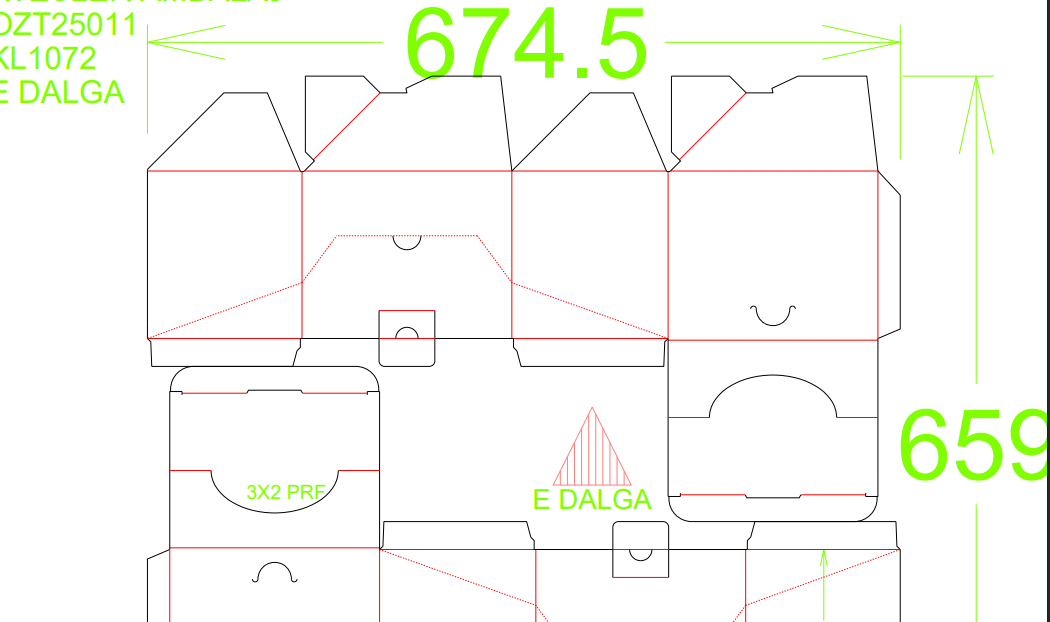

Discuss lamp markings, retail-box artwork, language, barcode and shipping protection. Power and CCT requests are reviewed against the selected model.
Confirm the sample and packaging proof before mass production. Sample availability and terms are agreed with your quotation.
MoreBulb manufacturing reference showing LED tube inspection. Request the inspection scope for your selected HID replacement model.
MANUFACTURING & ORDER REVIEW
MoreBulb has manufactured lighting since 1985 and LED lighting products since 2008.
CE, RoHS and SAA documentation is available for applicable products. Coverage must be confirmed for the selected HID replacement model.
ORDER PLANNING
A complete brief helps us review the configuration, documentation and packaging together.
Model, wattage, CCT, base, finish and quantity by SKU. Add the destination and sales channel.
Confirm current specifications, sample terms, artwork and applicable documentation before production.
Standard MOQ: 5,000 pieces. Standard lead time: 30 days after order and specification confirmation. Custom requirements are confirmed separately.
For broader sourcing, explore our LED bulb range or read the private-label LED bulb sourcing guide.
BUYER QUESTIONS
Useful answers for metal halide LED replacement sourcing and retrofit planning.
They are intended for metal halide retrofit projects in suitable fixtures. Confirm voltage, base, dimensions, output and operating conditions. This 220-240V direct-mains range requires the original HID control gear to be removed from the lamp supply path according to the approved instructions.
No. These lamps are specified for direct mains operation, not operation through the original HID ballast or ignitor. Have a qualified installer follow the exact model instructions for the conversion.
The old wattage alone is not enough to choose a replacement. Send the lamp type, fixture photos, mounting height and lighting requirement. Compare delivered illumination and operating conditions before approving an LED model.
They can be considered for suitable HPS retrofit projects after control-gear conversion and model review. Check the lamp envelope, supply, light distribution and the required color temperature.
The brochure lists separate power and lumen options. It does not specify a switchable-wattage function. Choose the required configuration when requesting a quotation.
Confirm suitability for the exact lamp and luminaire. Outdoor installations need appropriate environmental protection; enclosed housings require a thermal and ventilation review.
Discuss lamp markings, box artwork, language, barcode, pack quantities and transport protection with your model and destination-market brief. Confirm the artwork and sample before production.
The company standard MOQ is 500 pieces and standard production lead time is 30 days after order and specification confirmation. Custom requirements are reviewed separately. Request compliance documents for the exact model and market; company-level documentation does not cover every configuration.
SOURCE WITH MOREBULB
Send your model, base, power, CCT, finish, quantity and destination. For retrofit projects, include the old lamp details, fixture photos and mounting height.
